Pesado HD High Diffusion Shower Screen

Are you looking to buy Pesado HD High Diffusion Shower Screen in Australia?

Introducing the Pesado HD Espresso Shower Screen. This HD Espresso Shower Screen is designed for precision and consistency, eliminating the main issues causing irregular extractions.

Uneven water distribution has always been an issue when trying to achieve consistent extractions, this can be caused by the irregular water flow path through mesh shower screens, smaller surface area coverage and uneven puck infusion.

Utilising 18 channels, this HD espresso shower can target the exact spots of every extraction, resulting in consistent water flow between every shot.

Combined with the unique feature of the outer channels running all the way to the edge of the espresso shower screen, controlling water flow to target the entire puck bed right to the basket edge, giving us complete control over our water diffusion for every shot.

Features

• 18 Targeted Channels

• Precision Water Diffusion

• High Surface Coverage

Compatibility

• HD-54 Shower Screen
  • Bambino
  • Bambino Plus
  • Barista Pro
  • Barista Touch
  • Barista Touch Impress (manual dose recommended)
  • Duo-Temp Pro
  • Sage
  • Solis


*54 HD not compatible with Breville 54mm single baskets. Only recommended use with double baskets.

• HD-E61 Shower Screen
  • All E61 groups (except Belleza, Expobar, CREM, Turin and Gemilai E61 groups)
  • Ascaso Steel Uno / Duo
  • Ascaso Baby T
  • ECM E61
  • Profitec E61
  • Rocket E61, Appartamento
  • Lelit Bianca

*Not compatible with Belleza, Expobar, CREM, Turin and Gemilai E61 groups.

• HD-LM Shower Screen (LM GS3 and Mini/Micra customers)
  • La Marzocco
  • Synesso


*Not compatible with KB90, Strada X-1 & Modbar.

*LM GS3 and Mini/Micra customers

*The discharge mesh will need to be cleaned more regularly. This will not affect your machine's performance but it is recommended as you will find more discharge when using the screen.

• HD-MV Shower Screen
  • Mavam
  • Nuova Simonelli
  • Victoria Arduino
  • Breville 58mm Dual Boiler
  • Breville Oracle
  • Breville Oracle Touch
  • Breville Oracle Jet
  • Rancilio Silvia / Pro X
  • Profitec Go / Move
  • Bezzera BZ group
  • Lelit Elizabeth / Victoria
  • ECM Casa V.

*MV HD not compatible with Breville 58mm single baskets. Only use double baskets.

• GA -  Gaggia 58mm machines

  • Classic
  • Classic Pro
  • Classic Evo
  • Classic E24
  • Classic Pro E24

• EX54

  • Barista Express
  • Barista Express Impress (manual dose recommended)
  • Infuser

  • *54 HD not compatible with Breville 54mm single baskets. Only recommended use with double baskets.

Our new diffusion disc corrects the off-centered water flow built into the Breville Barista Express group head. Paired with our High Diffusion Shower Screen, it re-centres the water and distributes it evenly through 18 precision channels.

*This diffusion disc is only for Breville Barista Express and Infuser models. It is not needed on any other 54mm models.

• HX

  • Belleza E61
  • Expobar E61
  • CREM
  • Turin E61
  • Gemilai E61

Complete Infusion, Every Extraction!

Eliminating inconsistent water diffusion while targeting the entire puck surface area with our unique, full coverage high diffusion shower screen, dialling in your extractions has never been easier.

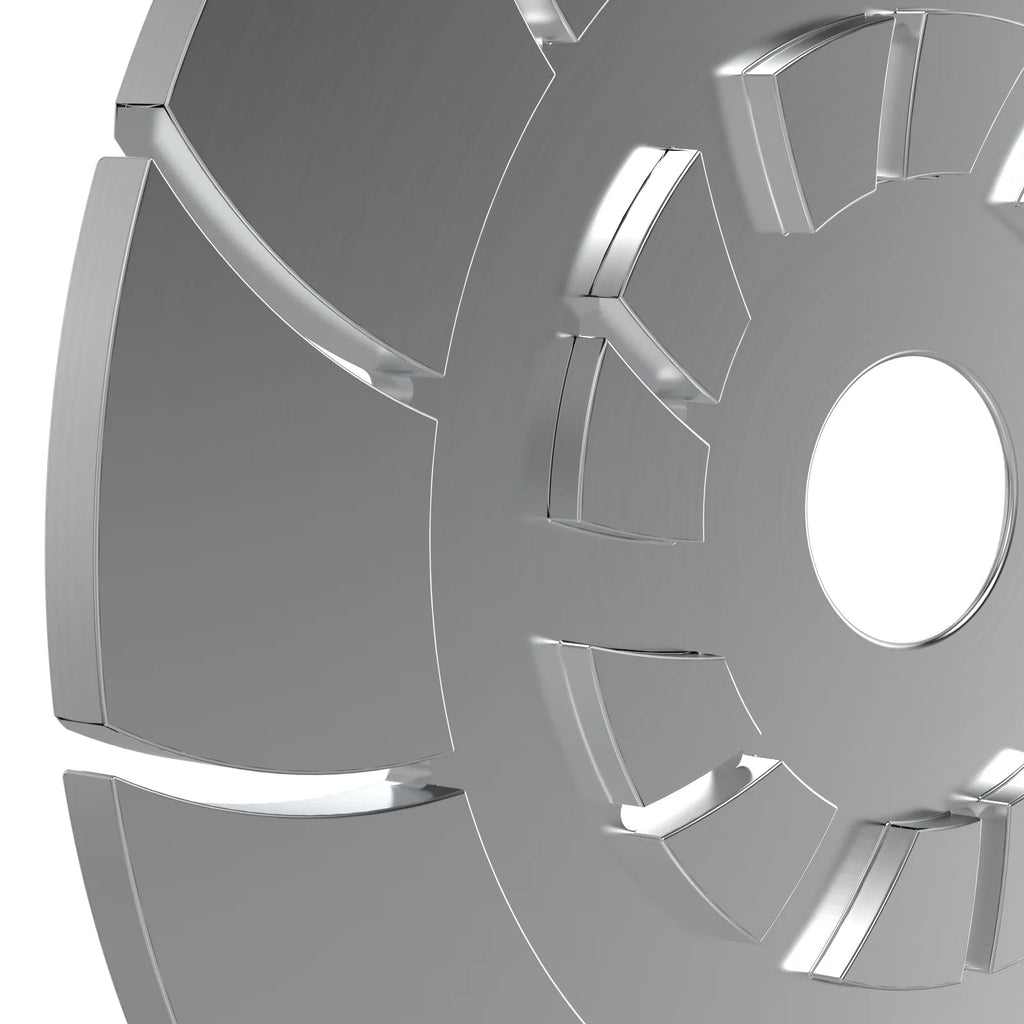

18 Targeted Channels

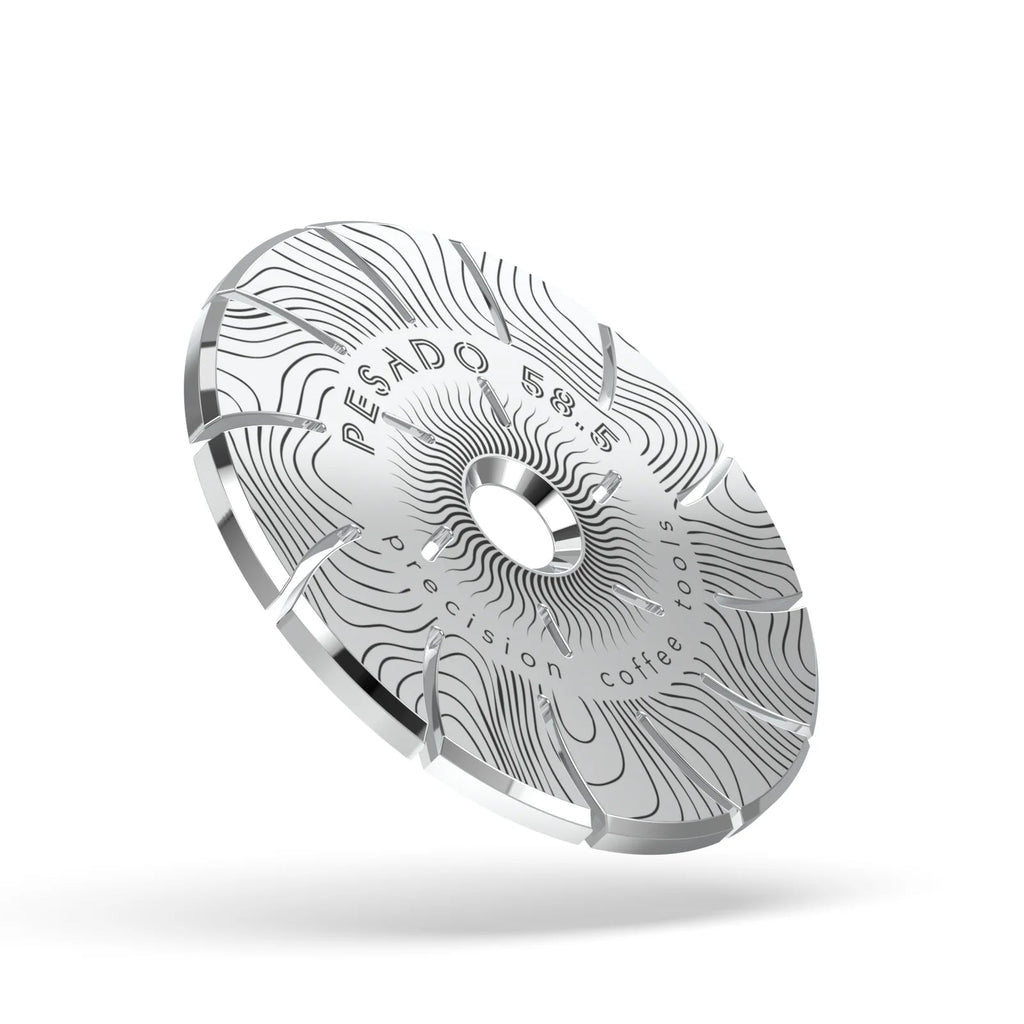

Crafted entirely from stainless steel, with 18 targeted channels the NEW Pesado HD High Diffusion Shower Screen gives complete control over your water distribution, every extraction.

Regular Water Flow

Regular shower screens use a mesh to help distribute the water flow evenly, this does work quite well but unfortunately can result in uneven water distribution.

This is due to the water gripping to the mesh, causing an irregular water flow every extraction.

High Diffusion Water Flow

The HD High Diffusion shower screen has been designed with channels to distribute the water flow exactly where we want it to be every time. Using this method allows us to hit the exact area we need to every extraction, distributing the water flow outwards across the entire puck bed, evenly.

The HD shower screen also has a unique feature where the outer channels run all the way to the edge, allowing water to flow directly out the ends into the basket wall.

High Diffusion Puck Clearance

Most shower screens are only designed to cover up to 54mm in diameter, leaving between 4-5mm around the perimeter, resulting in a smaller surface area of about 10-15% less coverage.

Utilising the unique design of the water channels that run all the way to the edge of the shower screen, including the extended diameter of 58.35mm of surface area, we can target the entire puck bed all at once resulting in a full, and complete infusion.

Specifications

• Material: 304 Stainless Steel
• Thickness: 3mm
• Holes: 18 Channels
• 54 HD Diameter: 53mm
• 58 HD Diameter: 58.35mm
• MV-HD Diffusion Plate Thickness: 5.4mm
• MV-HD Diffusion Plate Diameter: 57.5mm

Includes

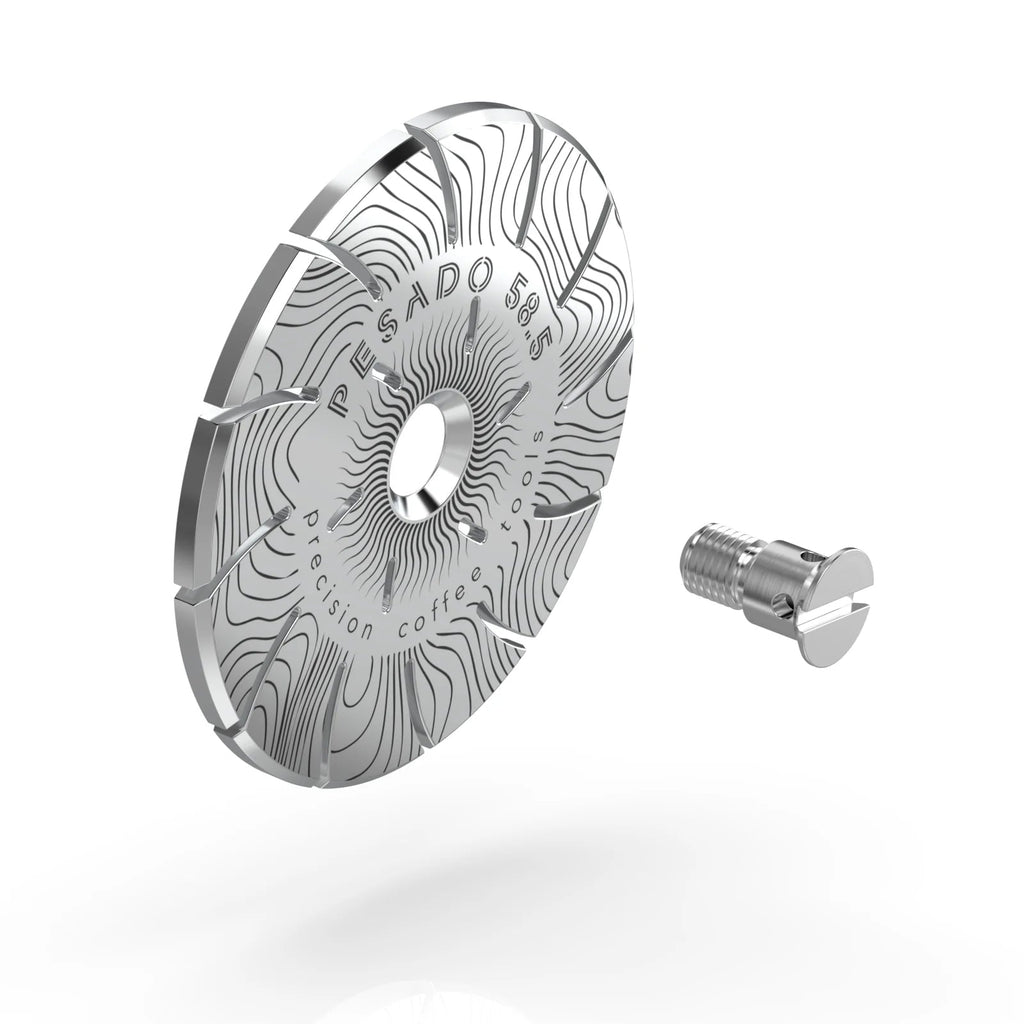

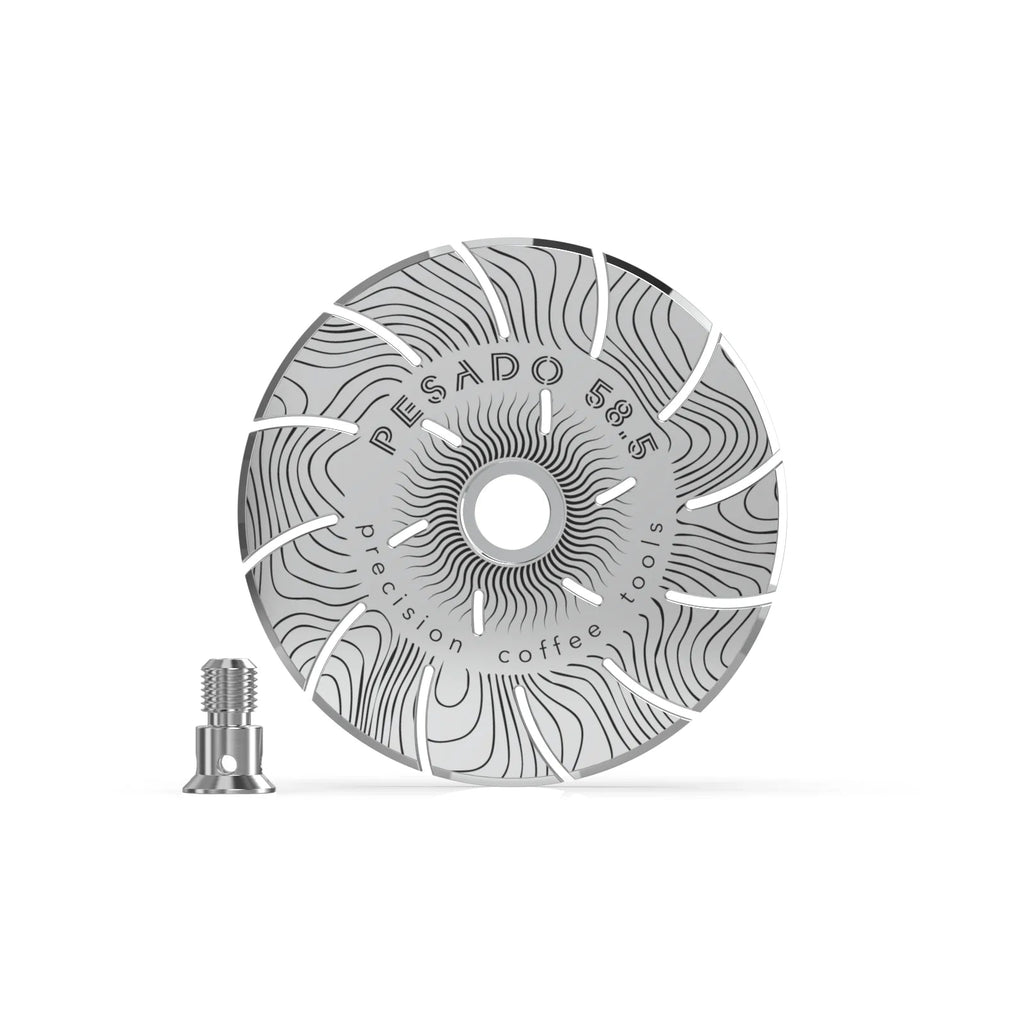

• LM HD Shower Screen
  • 1 x 58.35mm HD Shower Screen
  • 1 x Shower Screen Screw

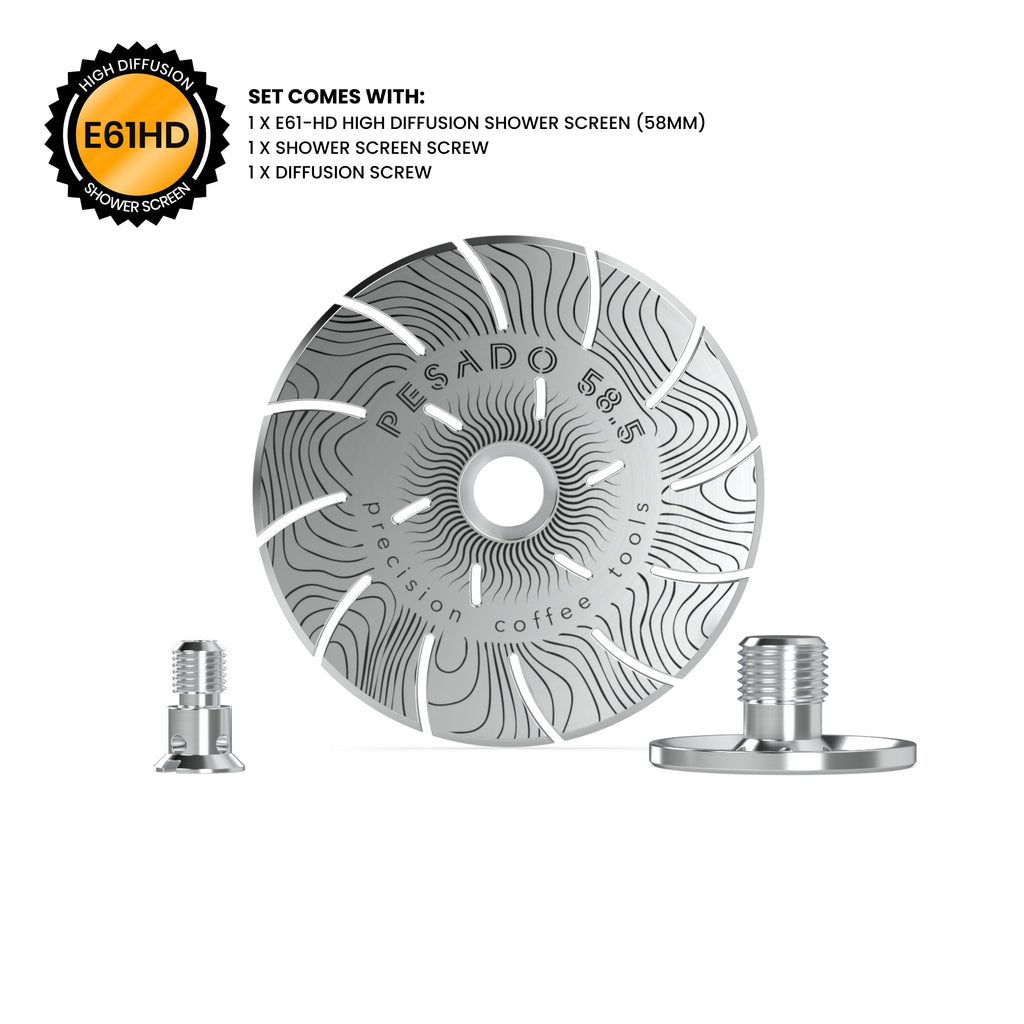

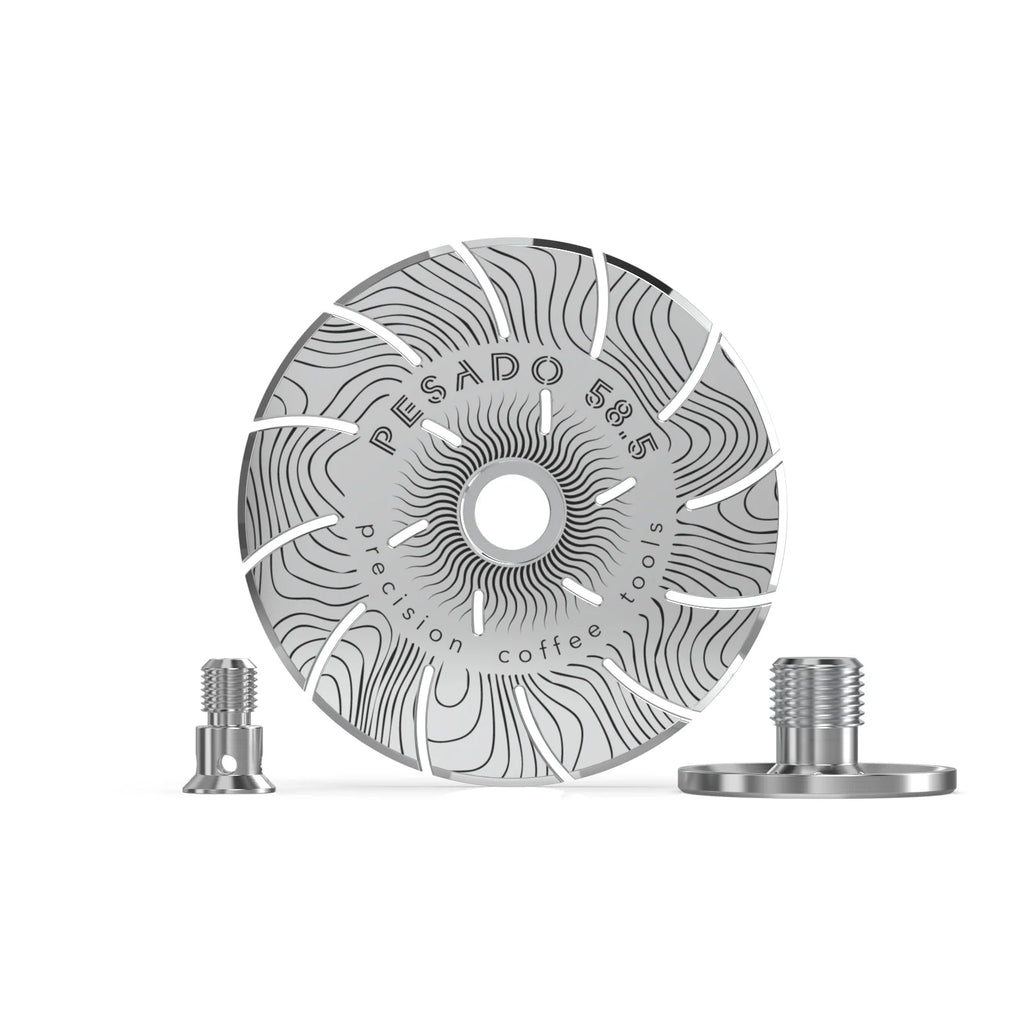

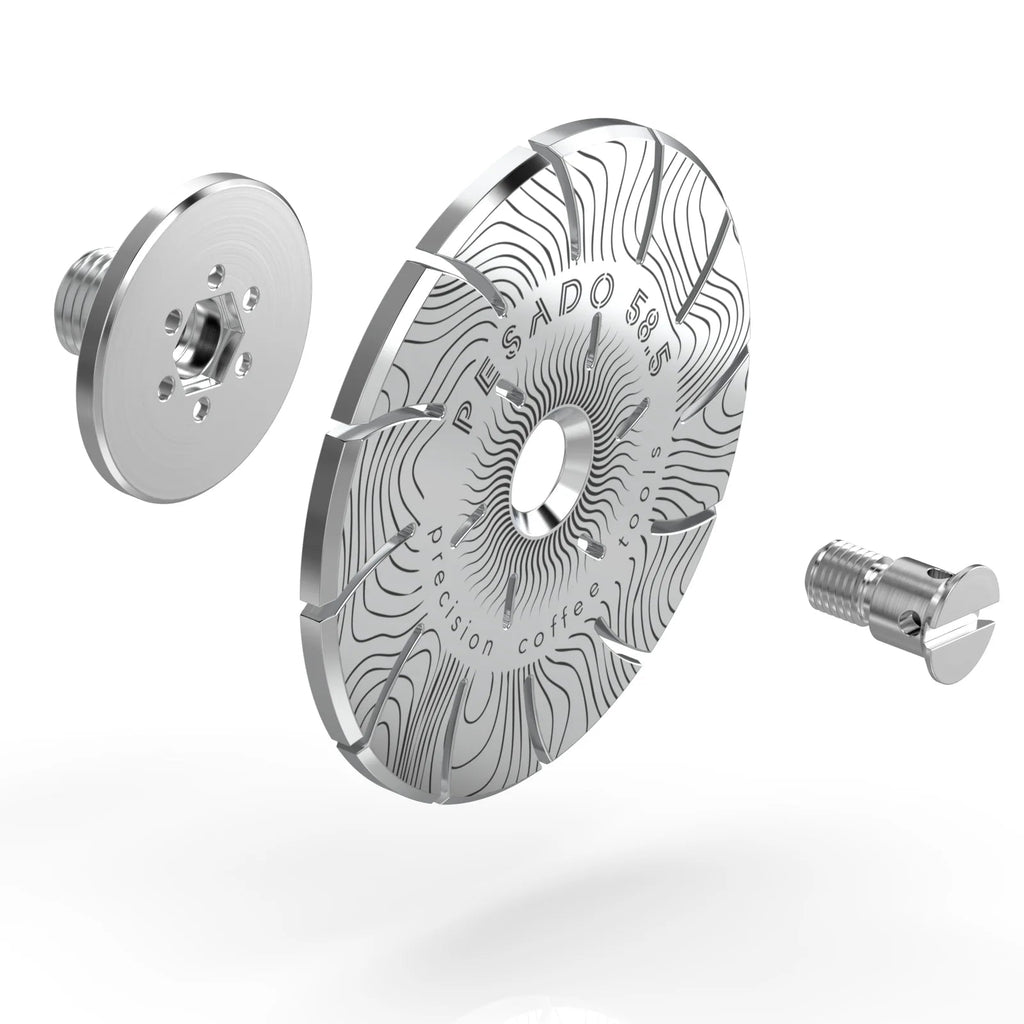

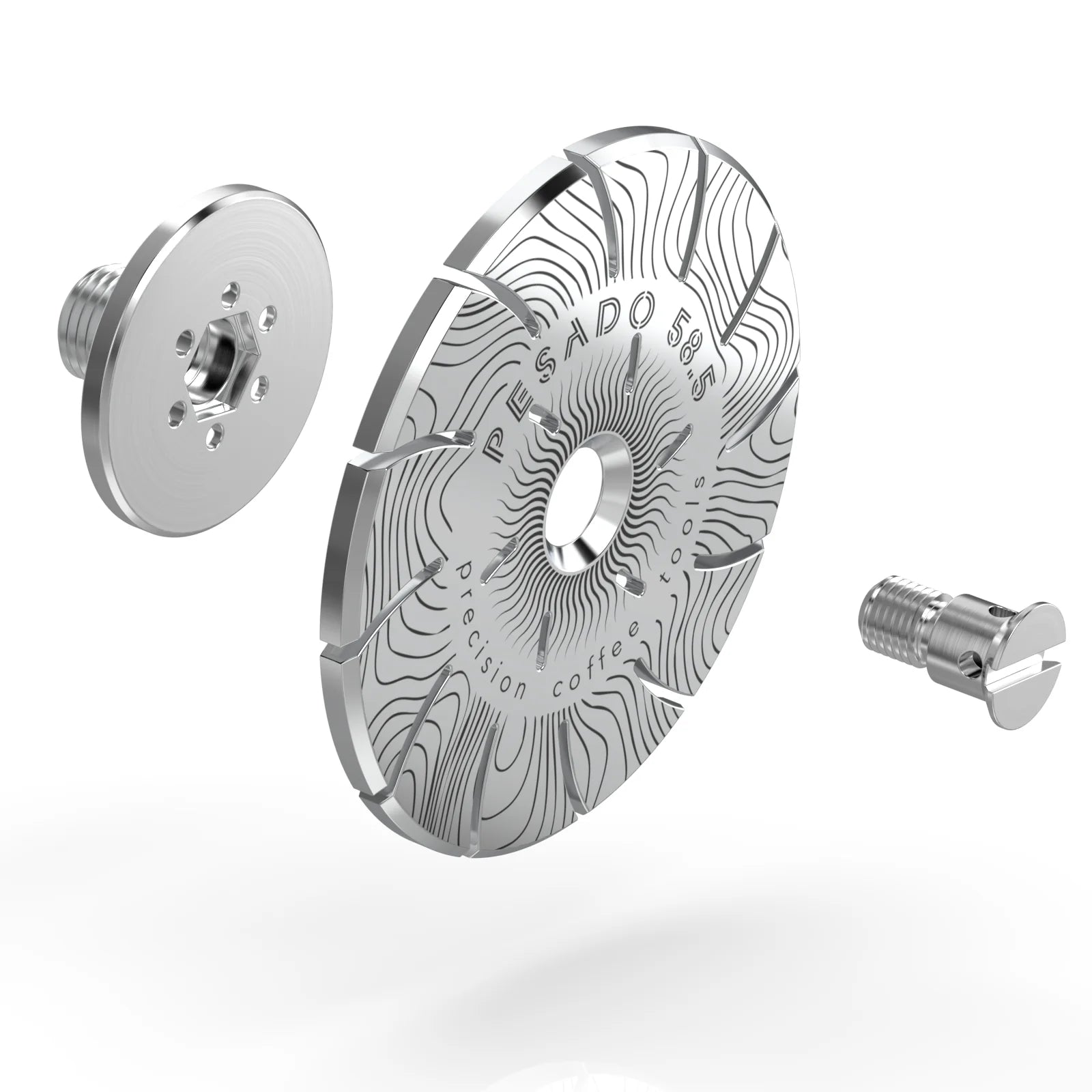

• E61 HD Shower Screen
  • 1 x Diffusion Plate
  • 1 x 58.35mm HD Shower Screen
  • 1 x Shower Screen Screw

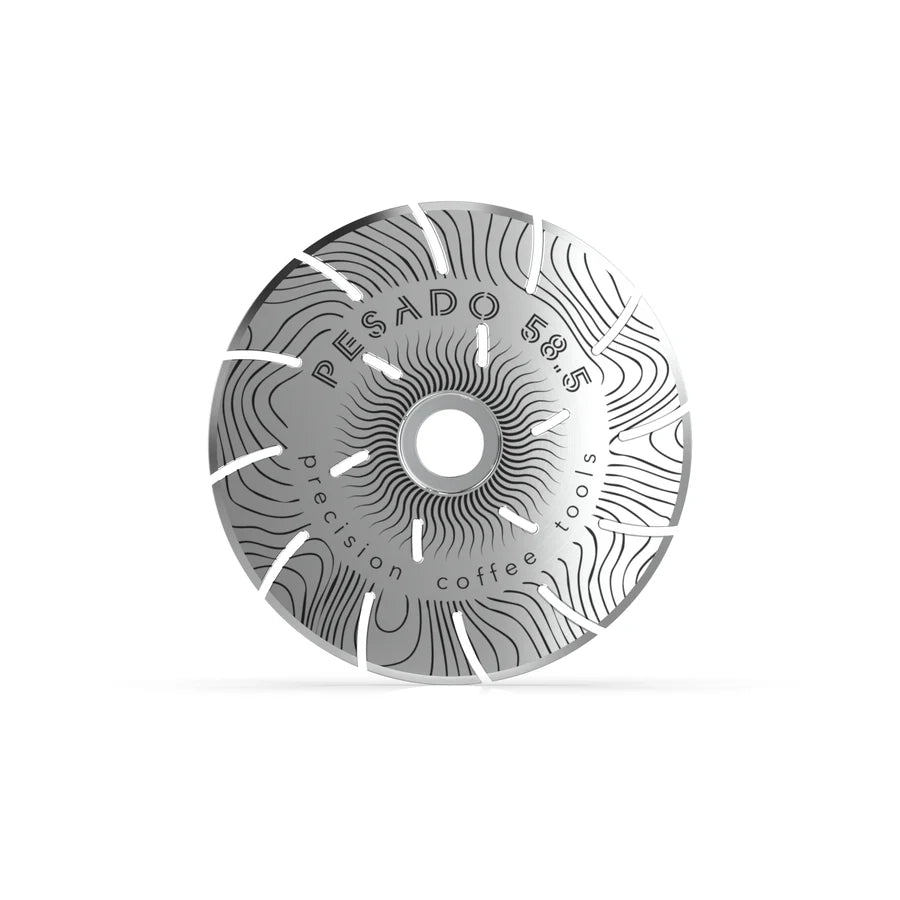

• 54 HD Shower Screen
  • 1 x 53mm 54-HD Shower Screen

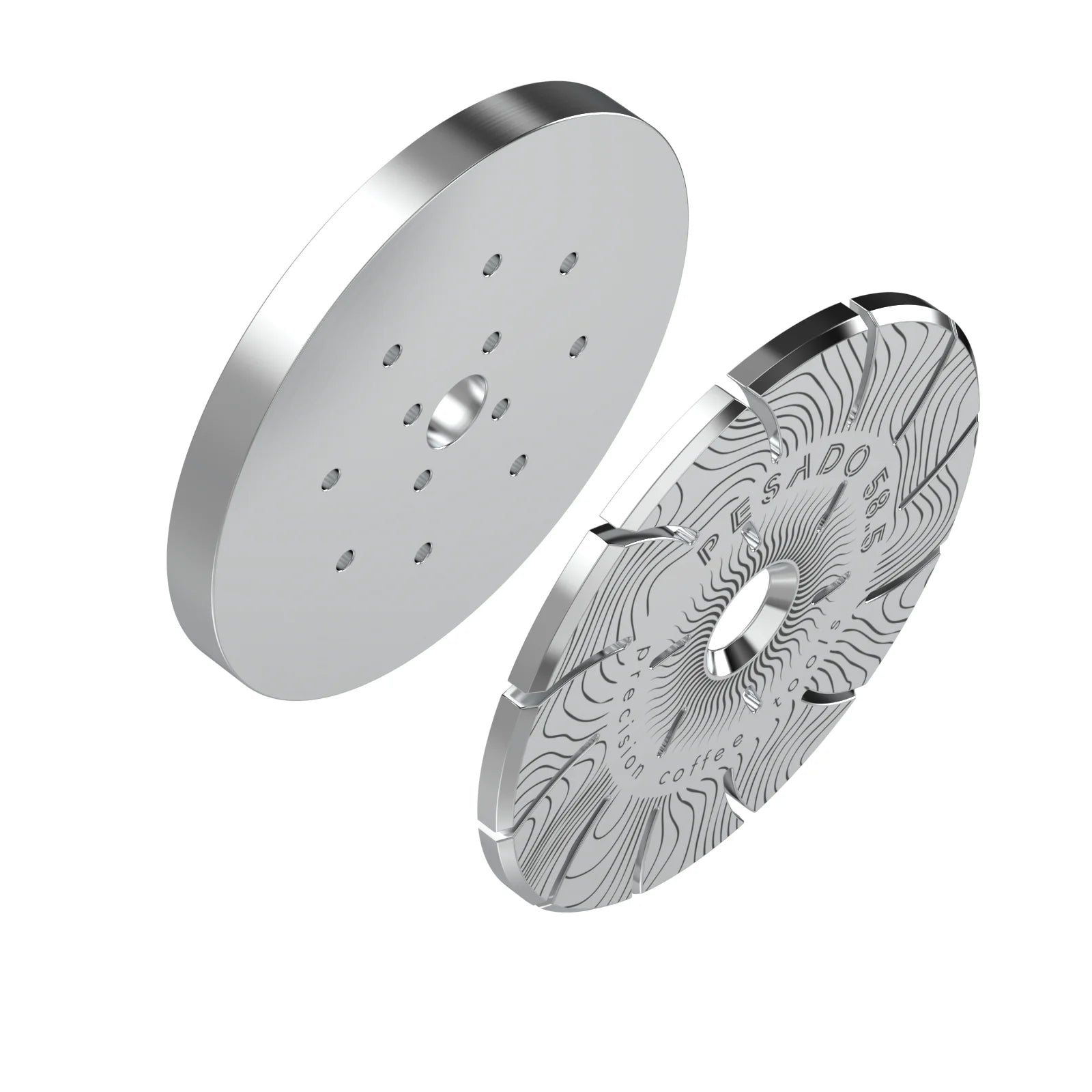

• MV HD Shower Screen
  • 1 x 58.35mm MV-HD Shower Screen
  • 1 x MV-HD Diffusion Plate. (You will need to use your current shower screen screw to use the product).
• HA HD Shower Screen
  • 1 x Gaggia Diffusion block
  • 1 x Gaggia shower screen
• EX54 HD Shower Screen
  •  1 x 53mm 54-HD High Diffusion Shower Screen, 1 x EX Diffusion Disc
• HX HD Shower Screen
  • 1 x HX Diffusion Plate, 1 x 58.35mm HD Shower Screen, 1 x Shower Screen Screw
