Pesado HD High Diffusion Shower Screen
Pesado HD High Diffusion Shower Screen
In stock
Couldn't load pickup availability
Are you looking to buy Pesado HD High Diffusion Shower Screen in Australia?
Introducing the Pesado HD Espresso Shower Screen. This HD Espresso Shower Screen is designed for precision and consistency, eliminating the main issues causing irregular extractions.
Uneven water distribution has always been an issue when trying to achieve consistent extractions, this can be caused by the irregular water flow path through mesh shower screens, smaller surface area coverage and uneven puck infusion.
Utilising 18 channels, this HD espresso shower can target the exact spots of every extraction, resulting in consistent water flow between every shot.
Combined with the unique feature of the outer channels running all the way to the edge of the espresso shower screen, controlling water flow to target the entire puck bed right to the basket edge, giving us complete control over our water diffusion for every shot.
Features
- 18 Targeted Channels
- Precision Water Diffusion
- High Surface Coverage
Compatibility
- HD-54 Shower Screen
- All Breville 54mm models
- Bambino, Bambino Plus
- Barista Express
- Barista Pro
- Barista Touch Impress
- Sage, Solis
- HD-E61 Shower Screen
- All E61 groups (except Belleza, Expobar, CREM, Turin and Gemilai E61 groups)
- Ascaso Steel Uno / Duo
- Ascaso Baby T
- Lelit Bianca
- HD-LM Shower Screen (LM GS3 and Mini/Micra customers)
- La Marzocco
- Synesso except KB90
- Strada X-1 & Modbar
- HD-MV Shower Screen
- All Mavam
- Nuova Simonelli
- Victoria Arduino
- Breville 58mm (Breville 58mm refers to the portafilter size, for 58mm it should have two wings, not 3)
- Rancilio Silvia / Pro X
- Profitec Go / Move
- Bezzera BZ group
- Lelit Elizabeth / Victoria, ECM Casa V
The discharge mesh will need to be cleaned more regularly. This will not affect your machine's performance but it is recommended as you will find more discharge when using the screen.
Seal Compatibility Notice

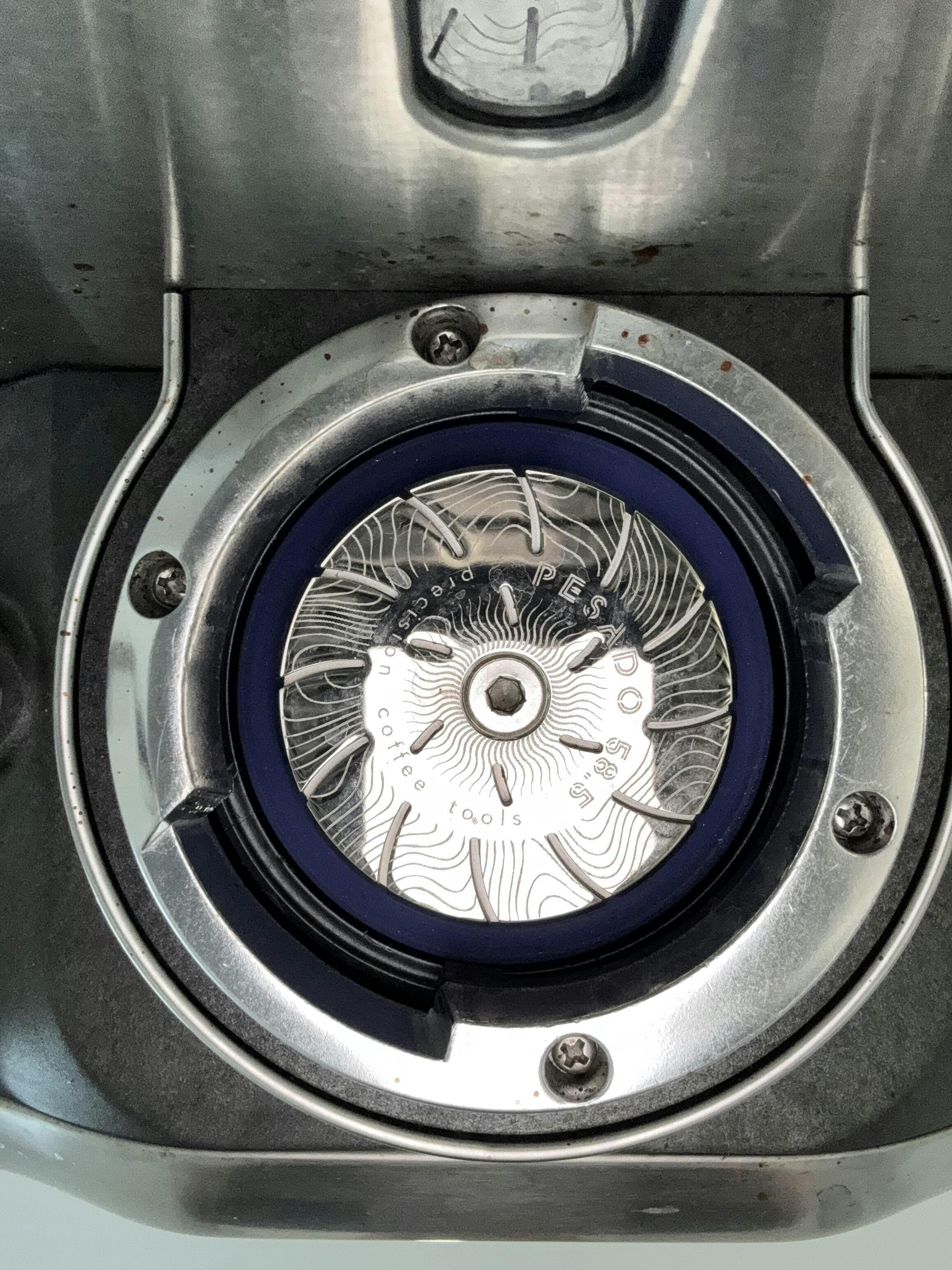

When installing the new HD (High Diffusion) Shower Screen, you may notice that your portafilter feels slightly loose. Don’t worry, this is completely normal. The HD screen is specifically designed to work best when paired with the Pesado HE (High Extraction) baskets - for the best coffee experience.
If you're not using an HE basket and prefer your portafilter to lock in closer to the 6 o’clock position, here are a few easy solutions:
A. Use a paper spacer behind the group seal.
You can purchase pre-made spacers or DIY your own using household paper materials, adjusting thickness as needed.
B. Try a thicker group seal.
Group seals are available in small size increments (typically 0.5mm or 1mm).
C. Upgrade to a HE Basket
Pair your HD screen with the HE basket for the perfect fit and performance.
Complete Infusion, Every Extraction!
Eliminating inconsistent water diffusion while targeting the entire puck surface area with our unique, full coverage high diffusion shower screen, dialling in your extractions has never been easier.

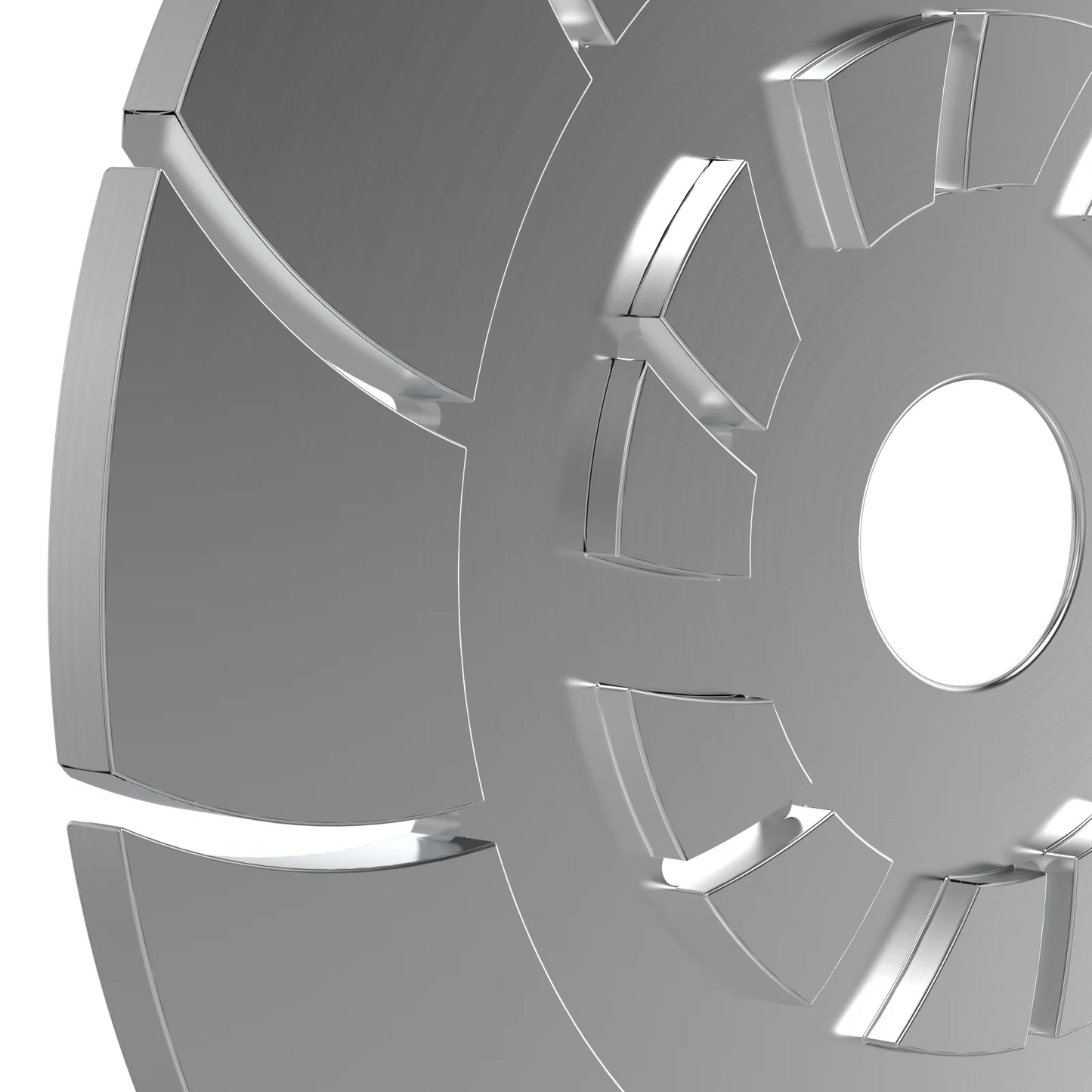

18 Targeted Channels
Crafted entirely from stainless steel, with 18 targeted channels the NEW Pesado HD High Diffusion Shower Screen gives complete control over your water distribution, every extraction.
Regular Water Flow
Regular shower screens use a mesh to help distribute the water flow evenly, this does work quite well but unfortunately can result in uneven water distribution.
This is due to the water gripping to the mesh, causing an irregular water flow every extraction.
High Diffusion Water Flow
The HD High Diffusion shower screen has been designed with channels to distribute the water flow exactly where we want it to be every time. Using this method allows us to hit the exact area we need to every extraction, distributing the water flow outwards across the entire puck bed, evenly.

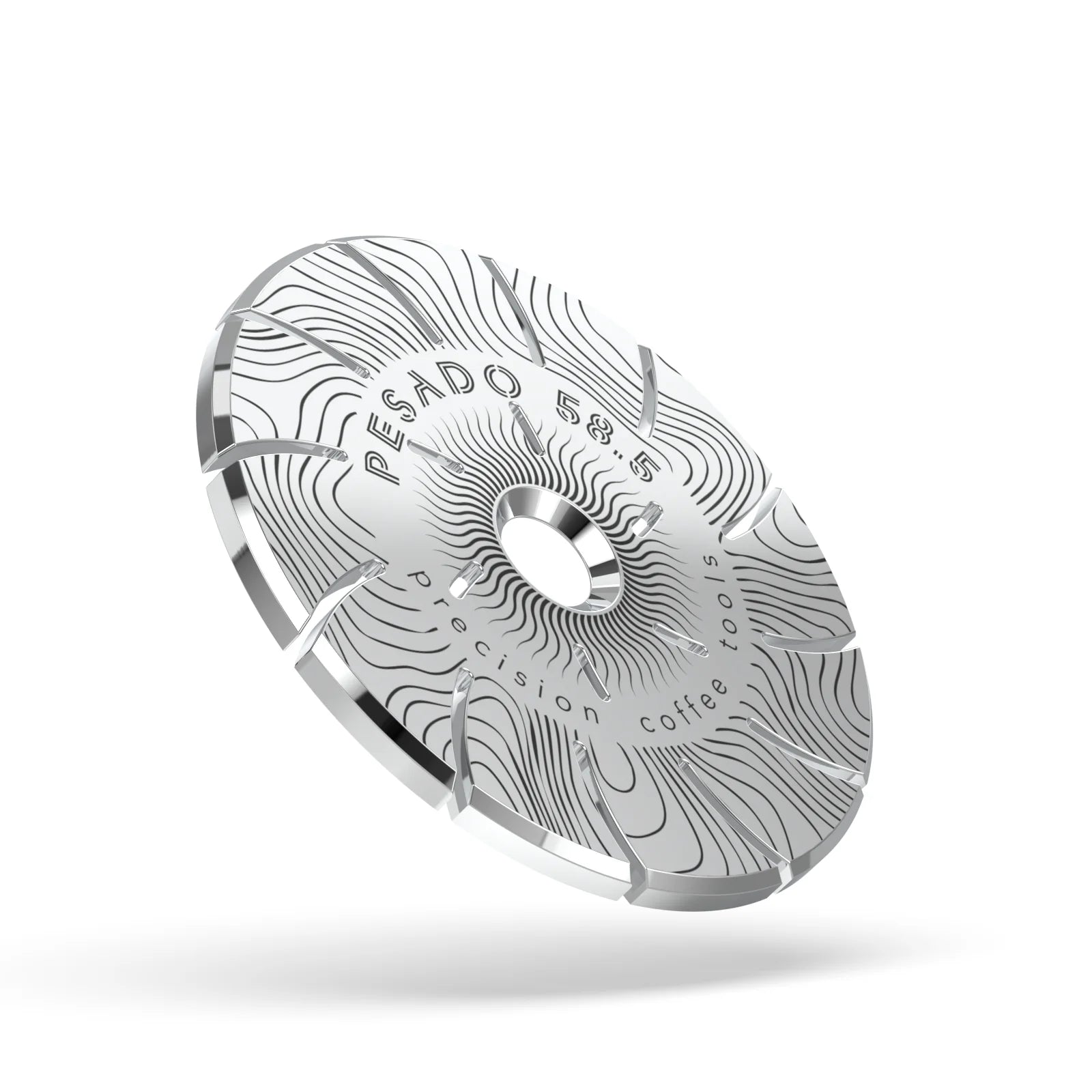

The HD shower screen also has a unique feature where the outer channels run all the way to the edge, allowing water to flow directly out the ends into the basket wall.
High Diffusion Puck Clearance
Most shower screens are only designed to cover up to 54mm in diameter, leaving between 4-5mm around the perimeter, resulting in a smaller surface area of about 10-15% less coverage.
Utilising the unique design of the water channels that run all the way to the edge of the shower screen, including the extended diameter of 58.35mm of surface area, we can target the entire puck bed all at once resulting in a full, and complete infusion.
Specifications
- Material: 304 Stainless Steel
- Thickness: 3mm
- Holes: 18 Channels
- 54 HD Diameter: 53mm
- 58 HD Diameter: 58.35mm
- MV-HD Diffusion Plate Thickness: 5.4mm
- MV-HD Diffusion Plate Diameter: 57.5mm
Includes

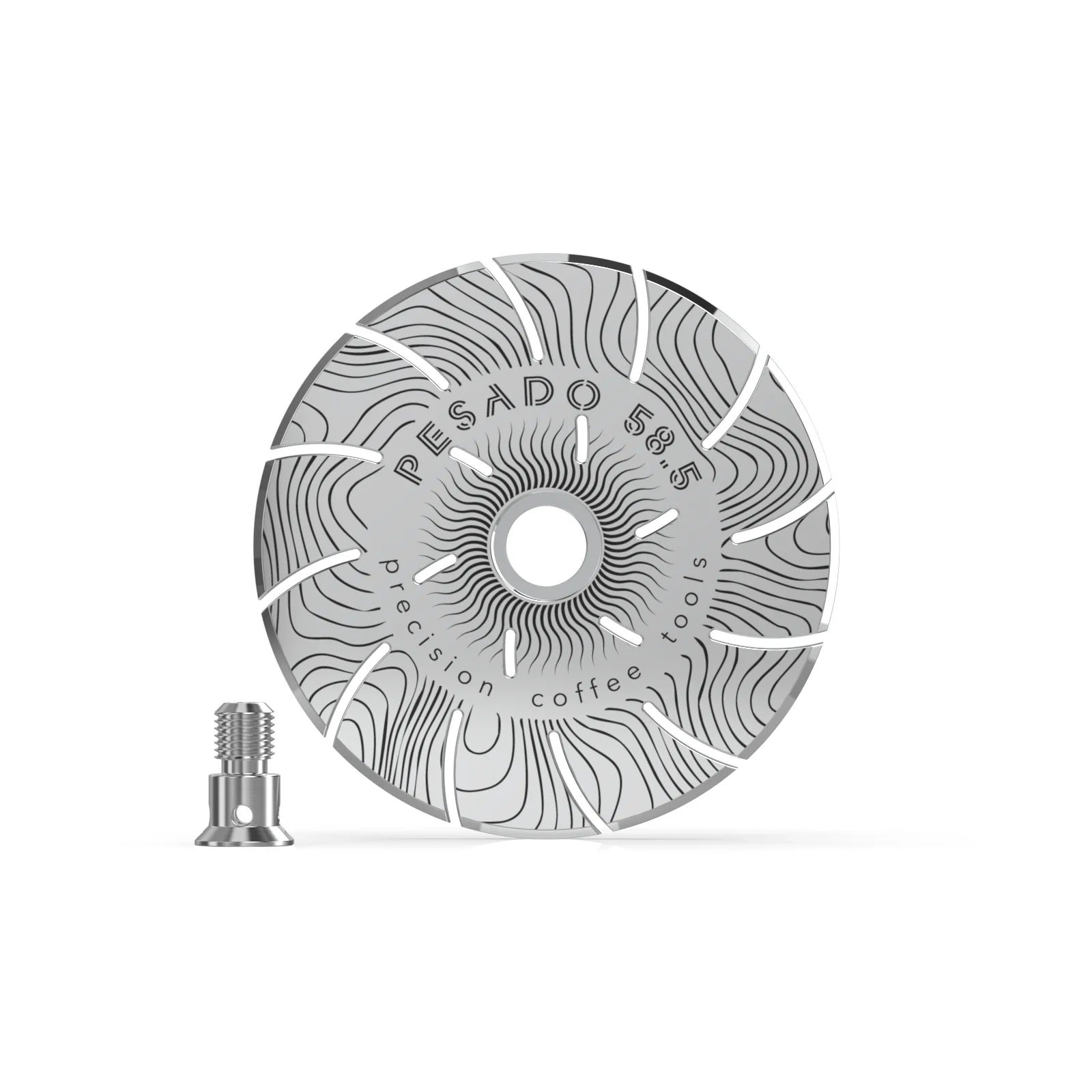

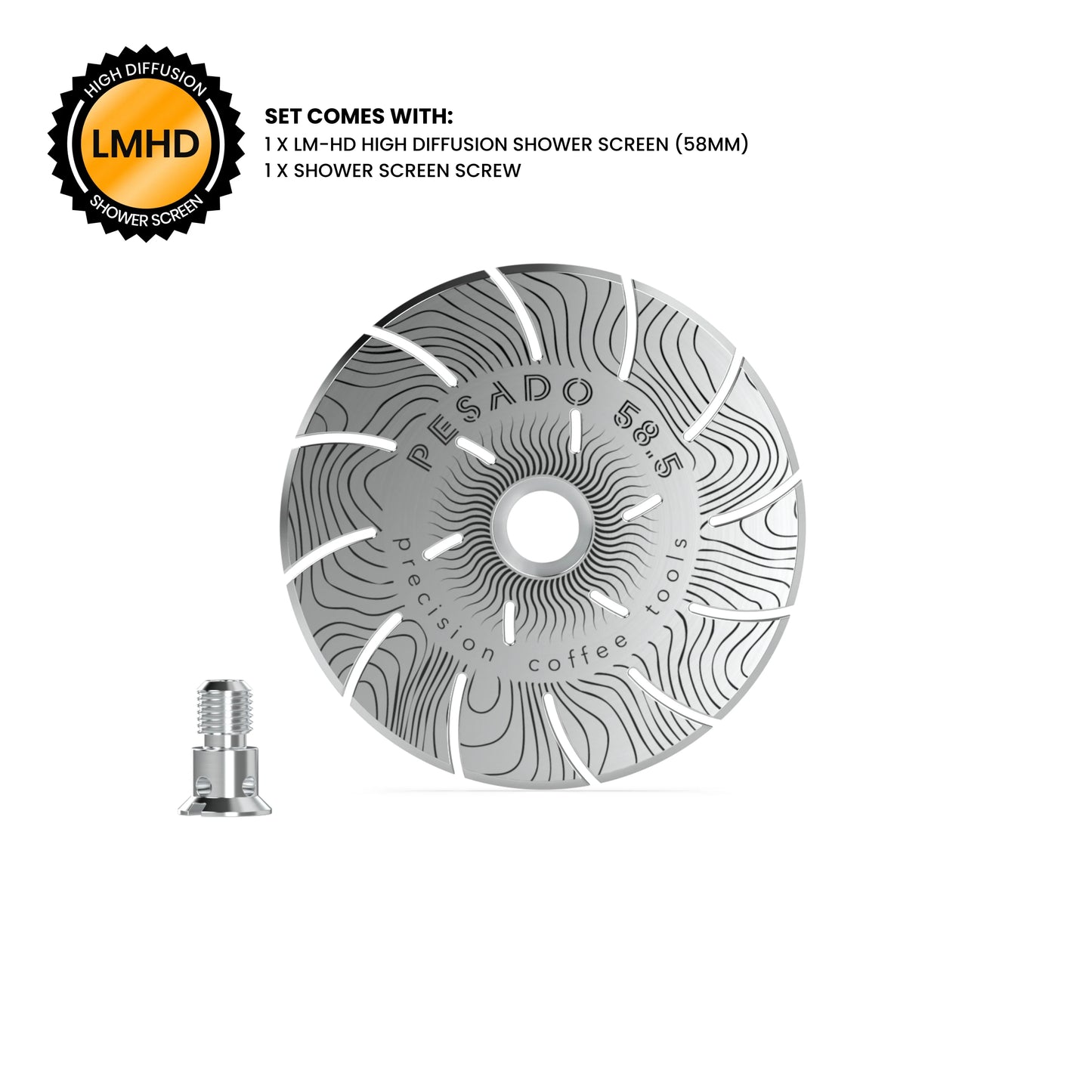

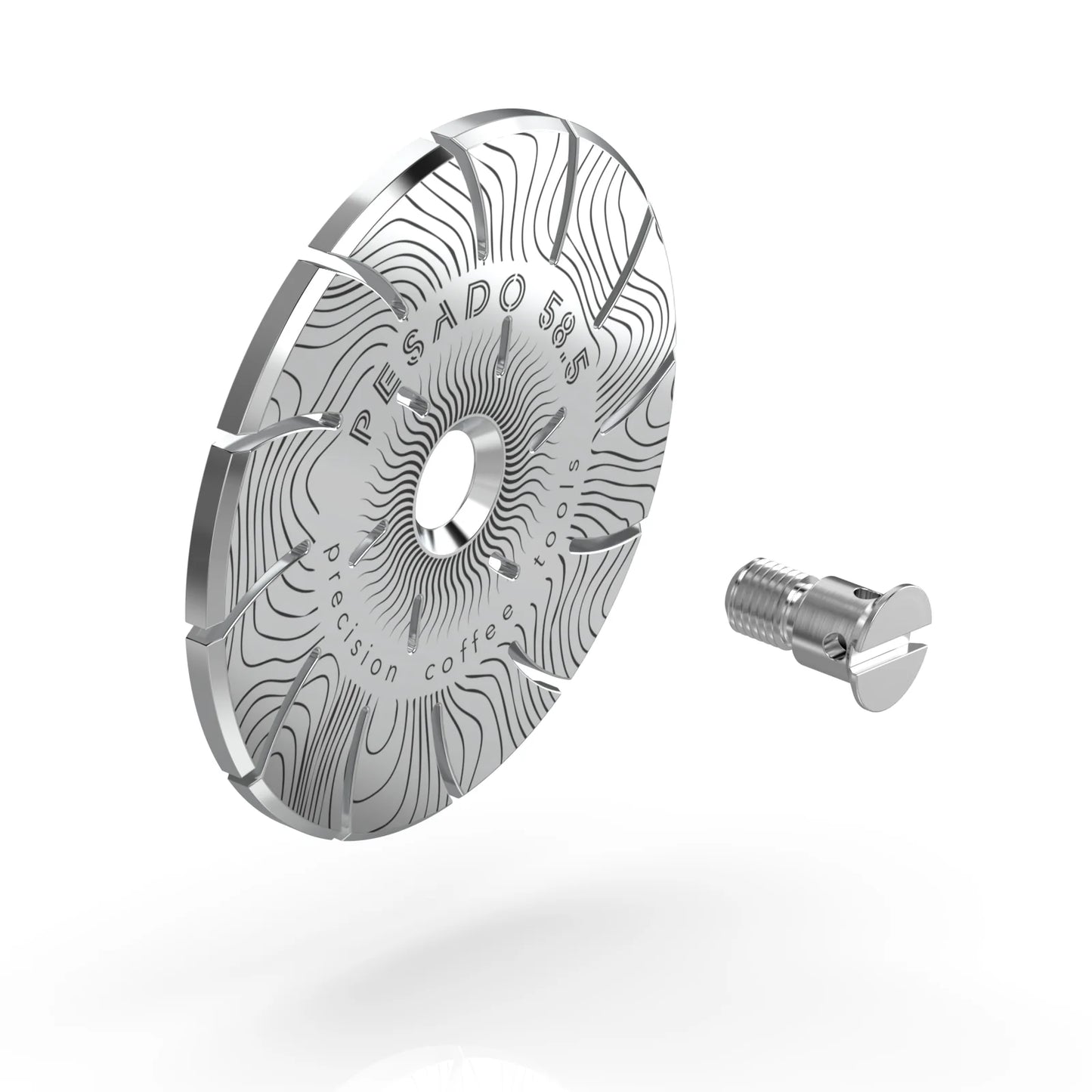

- LM HD Shower Screen
- 1 x 58.35mm HD Shower Screen
- 1 x Shower Screen Screw

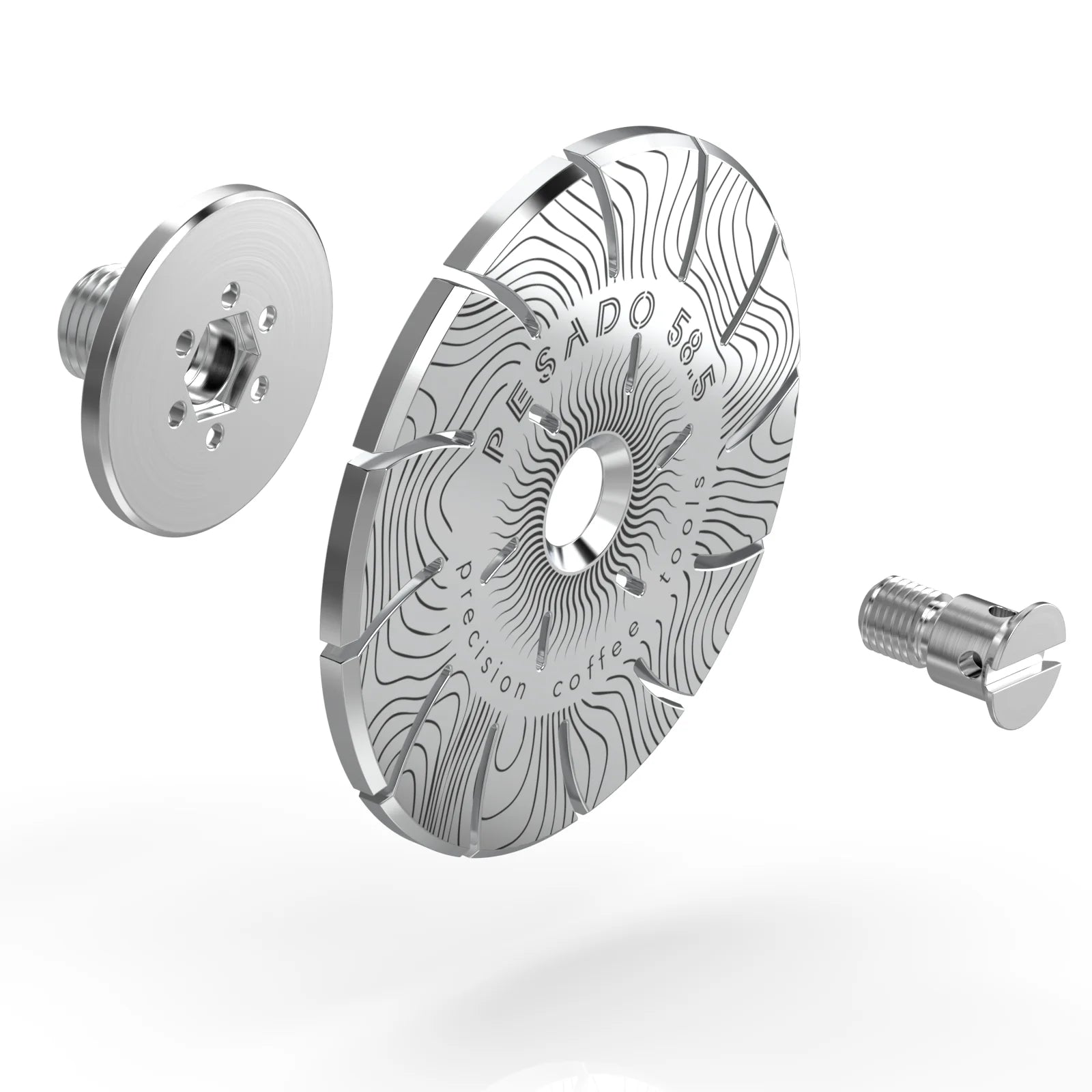

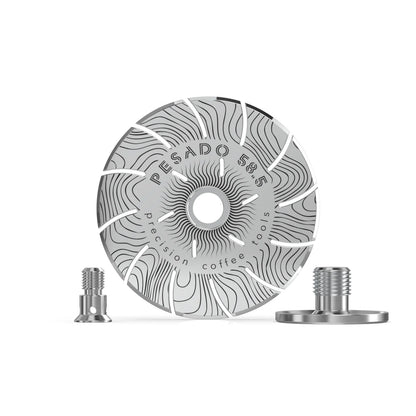

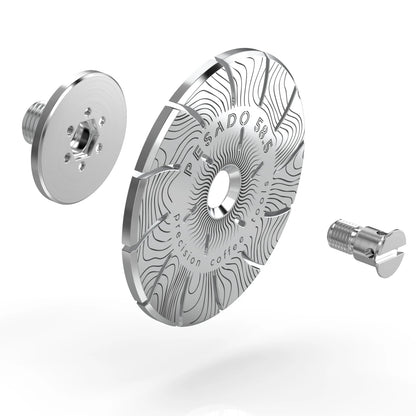

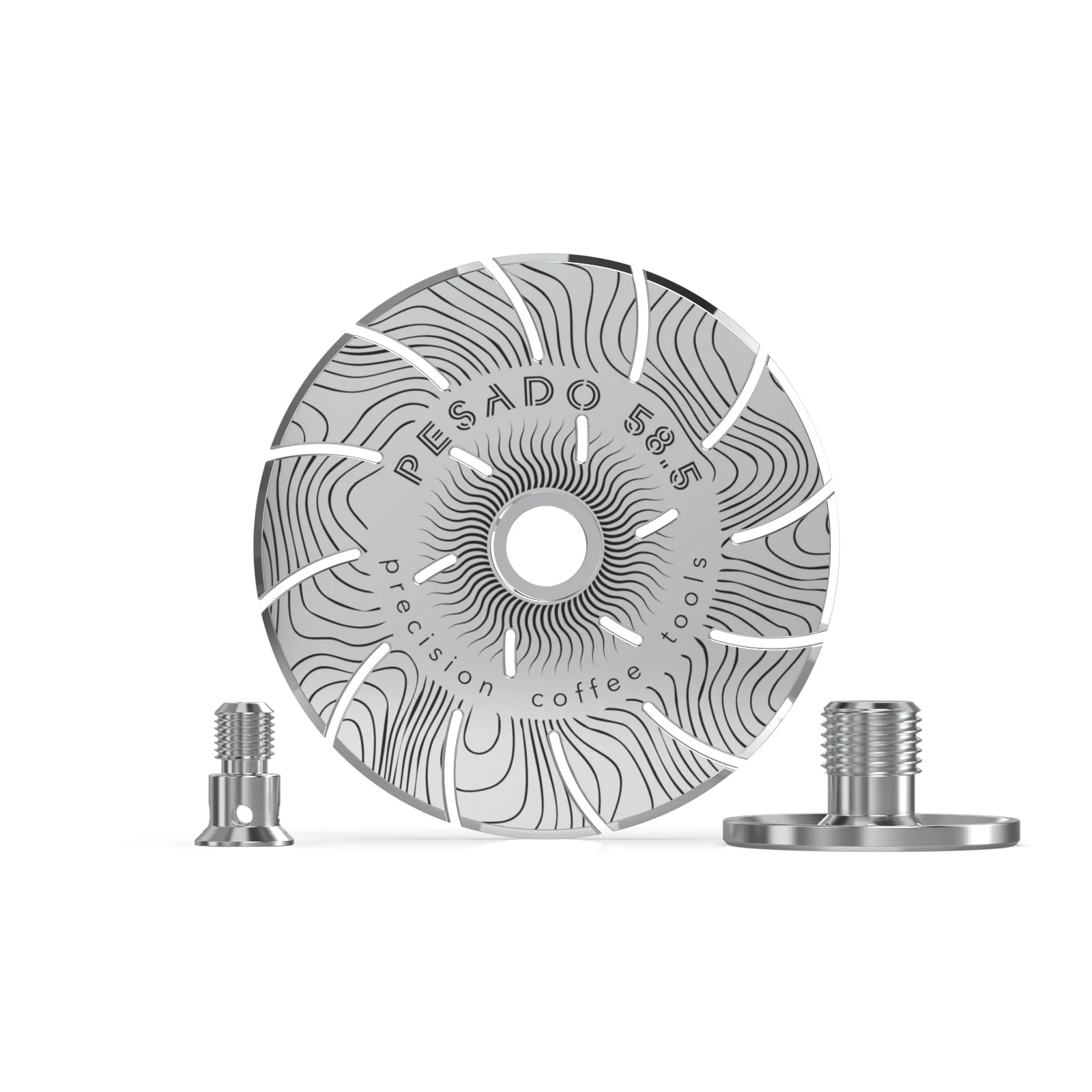

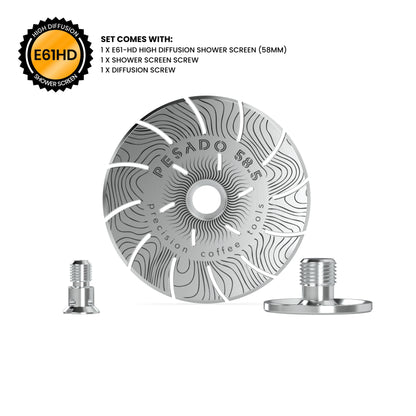

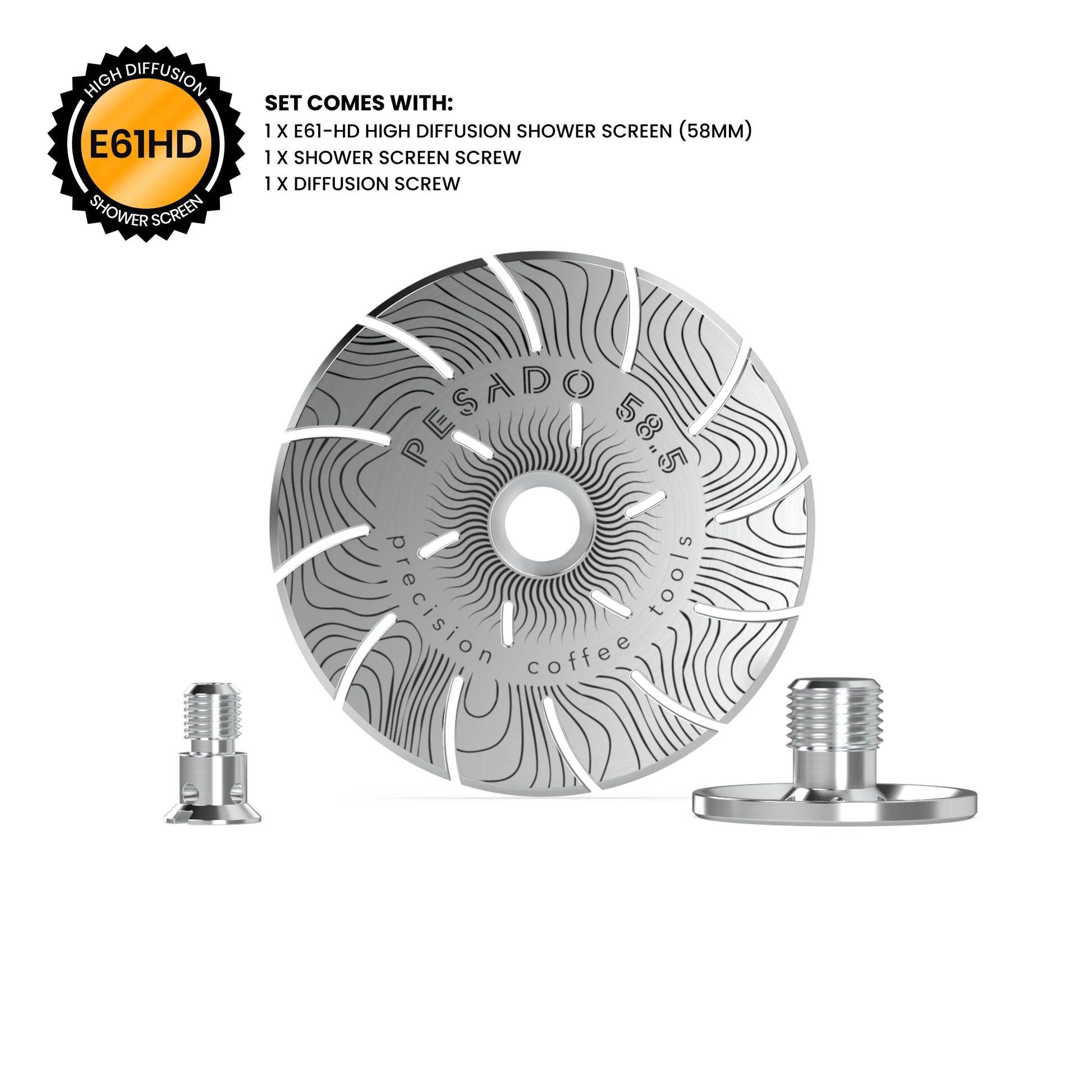

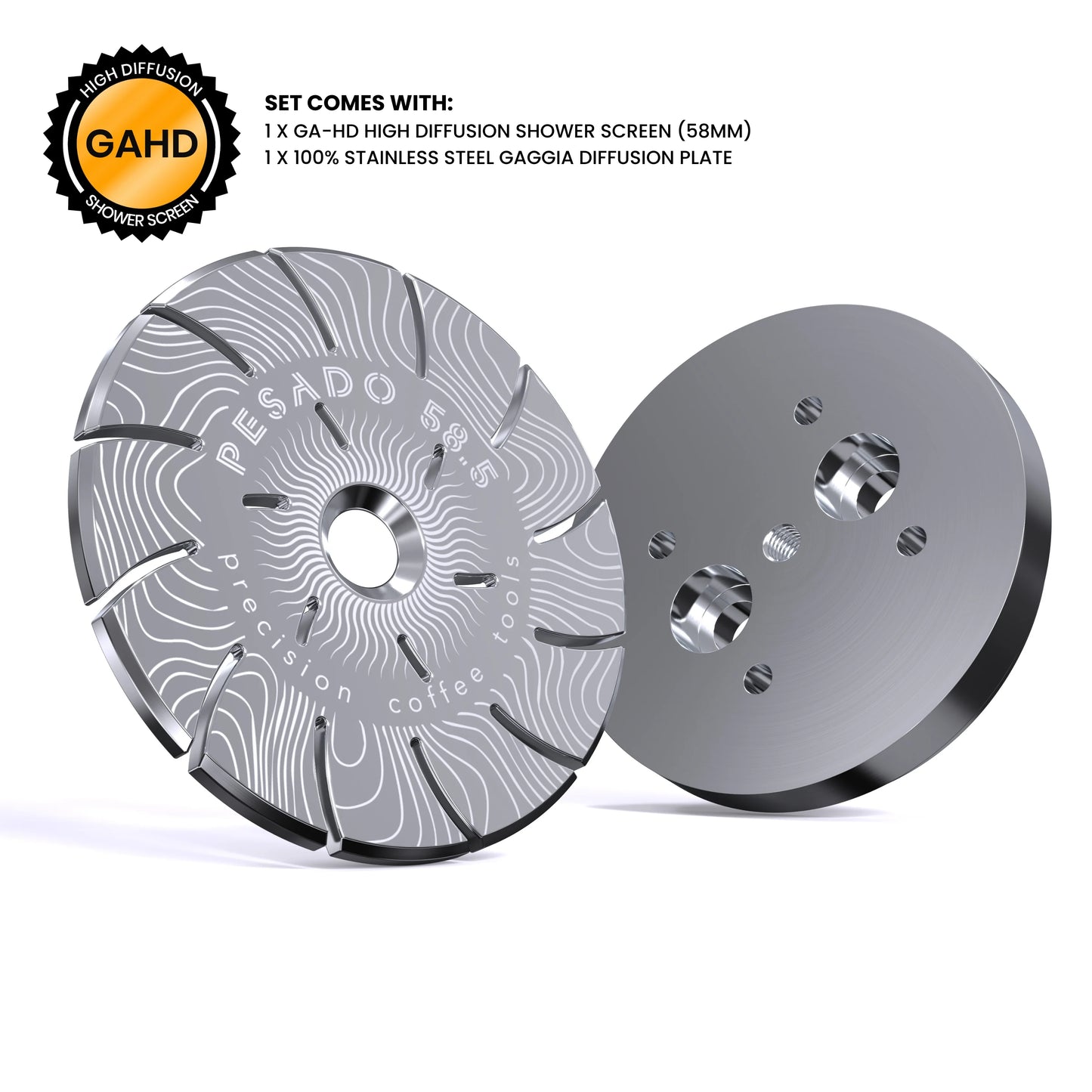

- E61 HD Shower Screen
- 1 x Diffusion Plate
- 1 x 58.35mm HD Shower Screen
- 1 x Shower Screen Screw

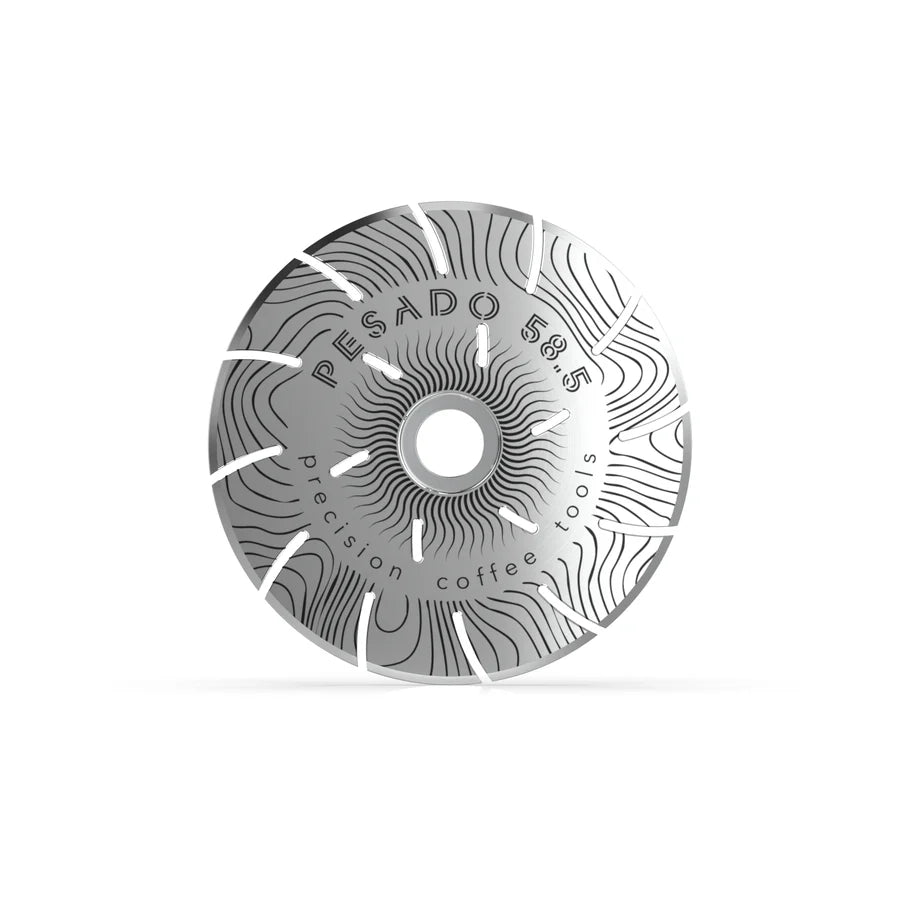

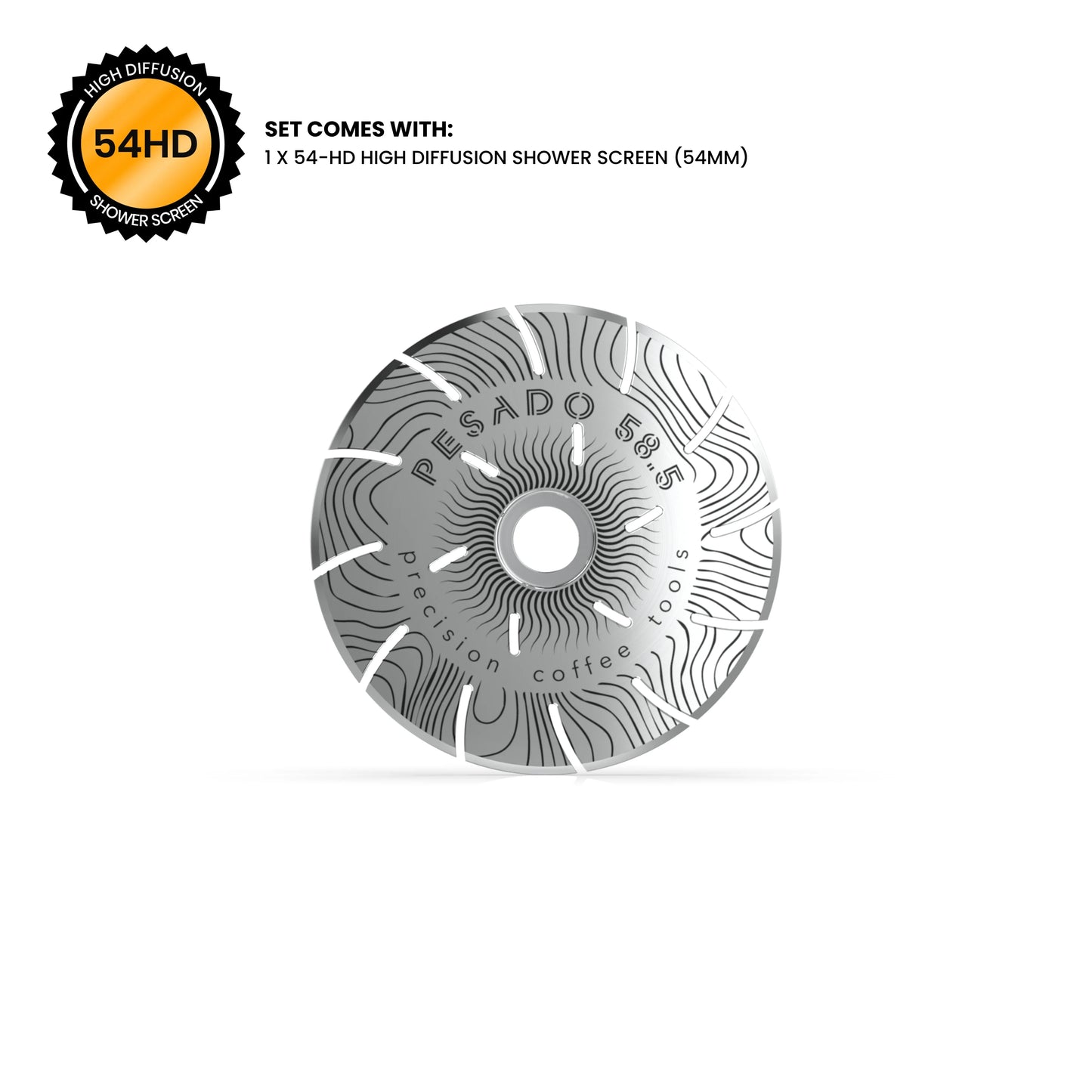

- 54 HD Shower Screen
- 1 x 53mm 54-HD Shower Screen

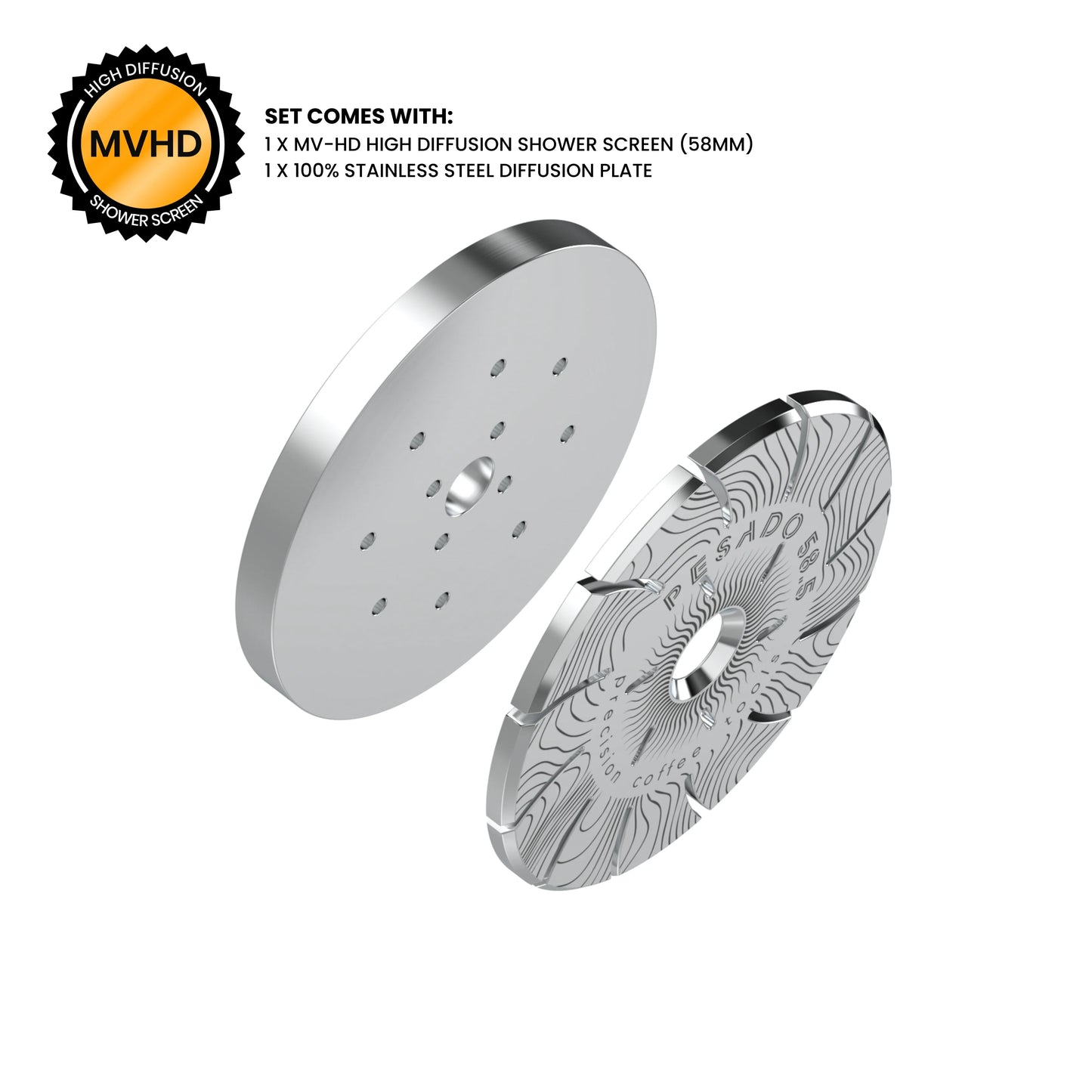

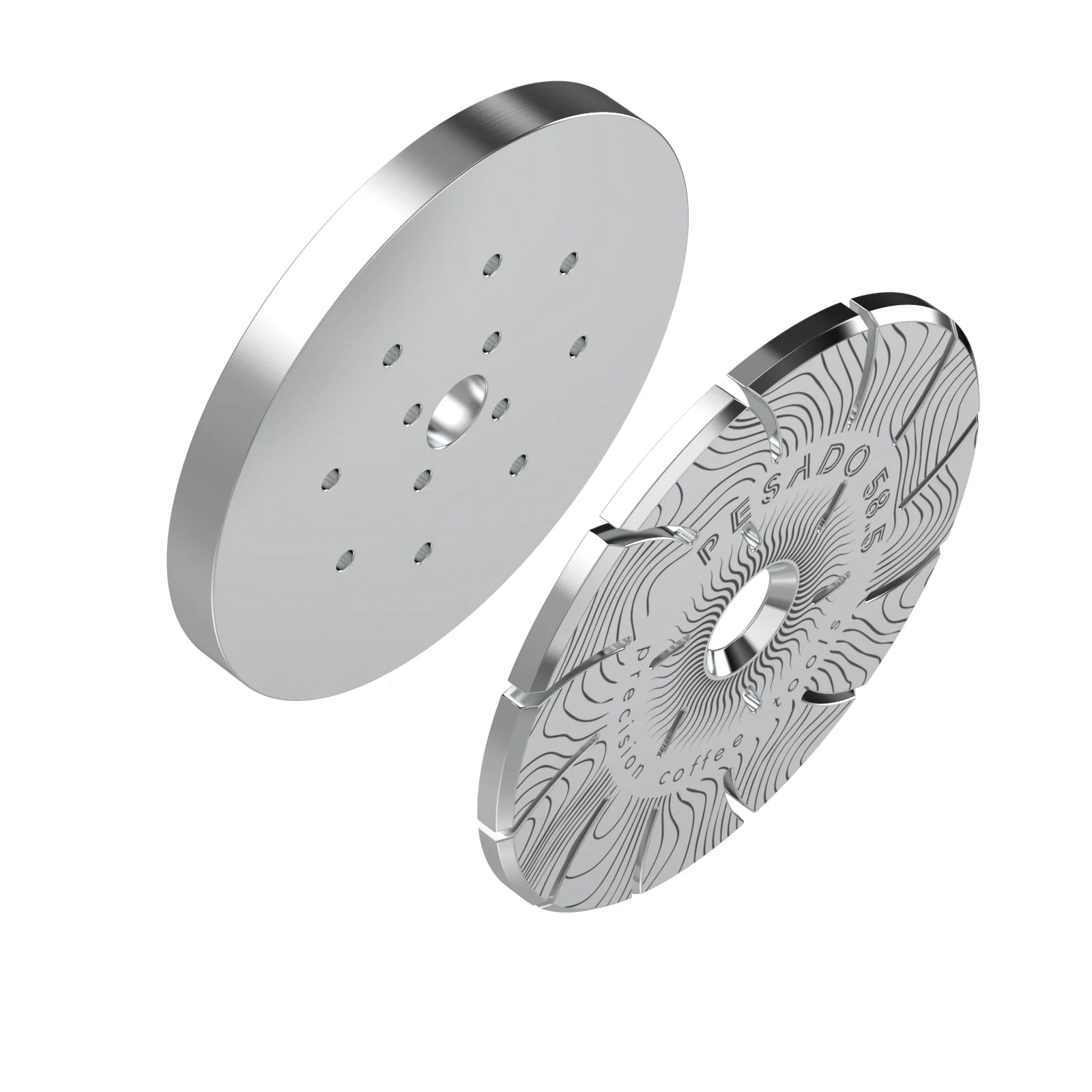

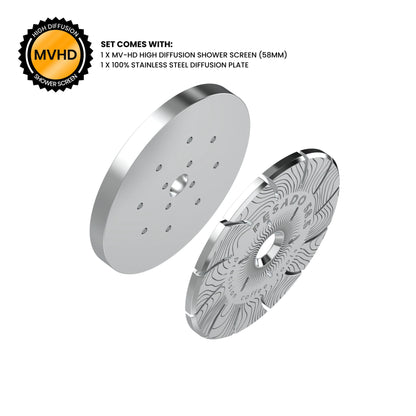

- MV HD Shower Screen
- 1 x 58.35mm MV-HD Shower Screen
- 1 x MV-HD Diffusion Plate. (You will need to use your current shower screen screw to use the product).
Bar Code:
Package Weight: 50g
W/H: V-02-D-03
